PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers

Name: PRY520 560 FullyAutomatic Single Color Offset Printing Machine with Ethernet for CardBillLabel Printers
Brand: PRINTYOUNG
Price: 29800 USD

Quality PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers for sale

Brand Name : PRINTYOUNG

Model Number : PRY-520 , PRY-560

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 29800 ~ 31000 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Sets per Month

Delivery Time : 40 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Model : PRY-520 , PRY-560

Max. Paper Size : 520 * 375 mm , 560 * 395 mm

Min. Paper Size : 200 * 155 mm

Paper Thickness : 0.04 ~ 0.4 mm

Max. Printing Area : 505 * 350 mm , 545 * 375 mm

Printing Speed : 3000 ~ 11000 sheet/h

Contact Now

PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers

PRY-520 Single Color Offset Printing Machine

Features

* Heavy duty mechanism structure.Cast iron pedestal,frame,cylinders etc. have the good in-tension and tenacity,ensuring high stability and good printing impression.
* Under-swing feeder equipment,especially for high speed printing.
* Paper fed continuously and stably,suitable for high speed printing.
* Special design in paper board,front lay,gripper and the other equipments.
* Plate cylinder and blanket cylinder go through with the bearer,running stably,ensuring qualified printing image.
* Fast Positioning plate mounted and tension equipment.
* Double spring gripper,getting rid of paper slid,ensuring the same gripper pressure during the long time printing work.
* Pneumatic control system,ensuring the press more stably.
* High precision imported bear,ensuring cylinder impression even in the high speed rotation.
* Chromed cylinder,prolongs the operation life.
* Operators are safe due to the installation of safety guard,adjustment door and protecting shield.
* PLC device and touch-screen operating.

Technical Parameters

Model	PRY-520	PRY-560
Max. Paper Size	520 * 375 mm	560 * 395 mm
Min. Paper Size	200 * 155 mm	200 * 155 mm
Paper Thickness	0.04 ~ 0.4 mm	0.04 ~ 0.4 mm
Max. Printing Area	505 * 350 mm	545 * 370 mm
Printing Speed	3000 ~ 11000 sheet/h	3000 ~ 11000 sheet/h
Plate Size	510 * 400 mm
Plate Thickness	0.3 mm
Blanket Type	straight-edge board rubber blanket
Blanket Size	528 * 437 * 1.9 mm
Under Blanket Size	505 * 389 * 0.6 mm
Feeding System	rotary type stream feeder
Feeding Pile Height	550 mm
Delivery System	chain delivery
Delivery Pile Height	400 mm
Infeed System	underswing gripper and paper feed drum
Number of Rollers	ink rollers:17 , water rollers:5
Registration System	pull side guide,drop-away front lay (diagonal adjustment possible)
Vertical Image Adjustment Range	± 20 mm
Vertical Image Micro Adjustment Range	± 1 mm
Lateral Image Micro Adjustment Range	± 2.5 mm
Oiling System	Centralized oiling system
Power	3 Phase 380V 50Hz	3 Phase 380V 50Hz
Wattage	4 kw
Motor Wattage	main motor 3 kw , pump motor 0.75
Dimensions	1910 * 1180 * 1620 mm	1910 * 1220 * 1620 mm
Net Weight	2000 kgs	2300 kgs

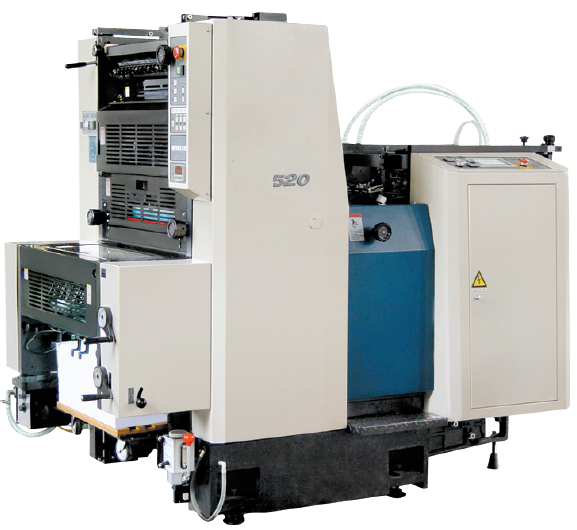

PRY-520 560 Fully-Automatic Single Color Offset Printing Machine with Ethernet for Card/Bill/Label Printers Images
