CHJ-E Automatic Paper Lunch Box Making Machine

Name: CHJE Automatic Paper Lunch Box Making Machine
Brand: PRINTYOUNG
Price: 16500 USD

Overall Dimension : 2280 * 1500 * 1500 mm

Place of Origin : China

MOQ : 1 Set

Maximum Size : 350 * 390 mm

Model Number : CHJ-E

Price : USD 16500 Set

Total Power : 8 kw

Working Air Source : air pressure 0.4 ~ 0.5 MPa (need to buy compressor)

Total Weight : 1 T

Brand Name : PRINTYOUNG

Voltage Requirement : 380V / 50Hz (please inform your power in advance)

Certification : CE

Delivery Time : 30 work days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Suitable Material : 100 ~ 400 g/m² PE (PE coated paper)

Working Gas Consumption : 0.4 ~ 0.5 m³/min

Max. Paper Convey Width : 290 mm

Payment Terms : L/C, T/T

Supply Ability : 30 Sets per Month

Production Capacity : 20 ~ 25 times/min

Contact Now

CHJ-E Automatic Paper Lunch Box Making Machine

Features

1.Mechanical transmission,energy-saving,stable and simple operation,microcomputer detection and domestic advanced technology products.
2.The device is automatic paper molding equipment,has the advantages of high speed,convenient operation etc..This machine adopts built-in hot air generator,suitable for single PE coated paper.
3.Through the automatic feed paper,corner heating (comes with hot air generating device),fold the cover (by mechanical device),hot press molding (adhesive box four corners),automatic points collected,microcomputer control of continuous processes.For the production of single-cell disposable paper boxes,paper lunch boxes,food packaging boxes.
4.The fastest working speed is 25 times per minute.Domestic leading speed level.It has the monitor computer system.If the fault the machine will stop and alarming.

Technical Parameters

Type	CHJ-E
Production Capacity	20 ~ 25 times/min
Maximum Size	350 * 390 mm
Max. Paper Convey Width	290 mm
Suitable Material	100 ~ 400 g/m² PE (PE coated paper)
Total Power	8 kw
Voltage Requirement	380V / 50Hz (please inform your power in advance)
Total Weight	1 T
Overall Dimension	2280 * 1500 * 1500 mm
Working Air Source	air pressure 0.4 ~ 0.5 MPa (need to buy compressor)
Working Gas Consumption	0.4 ~ 0.5 m³/min

Configuration

Folding Mechanism

Cover Forming Process:

1.Hot air preheating → 2.Eject cylinder fold paper → 3.Folding cap mould blanking angle → 4.Folding lid

Cap Folding Structure Composition Details:

1.Up and down folding cylinder.
2.Right and left folding cylinder.
3.Front folding cylinder.
4.Cover forming pressing mould.
5.Preheating blowing structure.
6.Pressing mould cylinder.

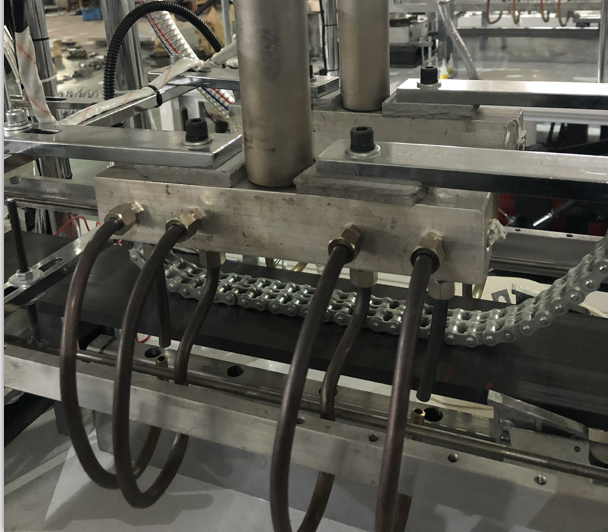

Box Body Hot Air Part

This functional part is mainly composed of the blower inside the fuselage,the hot air heater on the rack,the hot air pipe and the connection part.Mainly provides hot air preheating for the box corners,and provides preheating process for box molding.

Box Molding Function

This part is mainly composed of upper and lower forming molds,a main cylinder and a connecting part.The upper mold of the mold is moved up and down by the forming cylinder,and finally the upper and lower molds are closed to form the box body.

Box Collection Part

The function of this part is mainly to collect counts,stack the boxes after molding,set the number of folds,reach a certain number and then release the splint by the cylinder to achieve the function of collecting count.
