Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW

Name: Mechanical Six Corner Automatic Folder Gluer 350mMin 20KW
Brand: PRINTYOUNG
Price: 1 USD

Quality Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW for sale

Brand Name : PRINTYOUNG

Model Number : PRY-YC-650

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 40 days

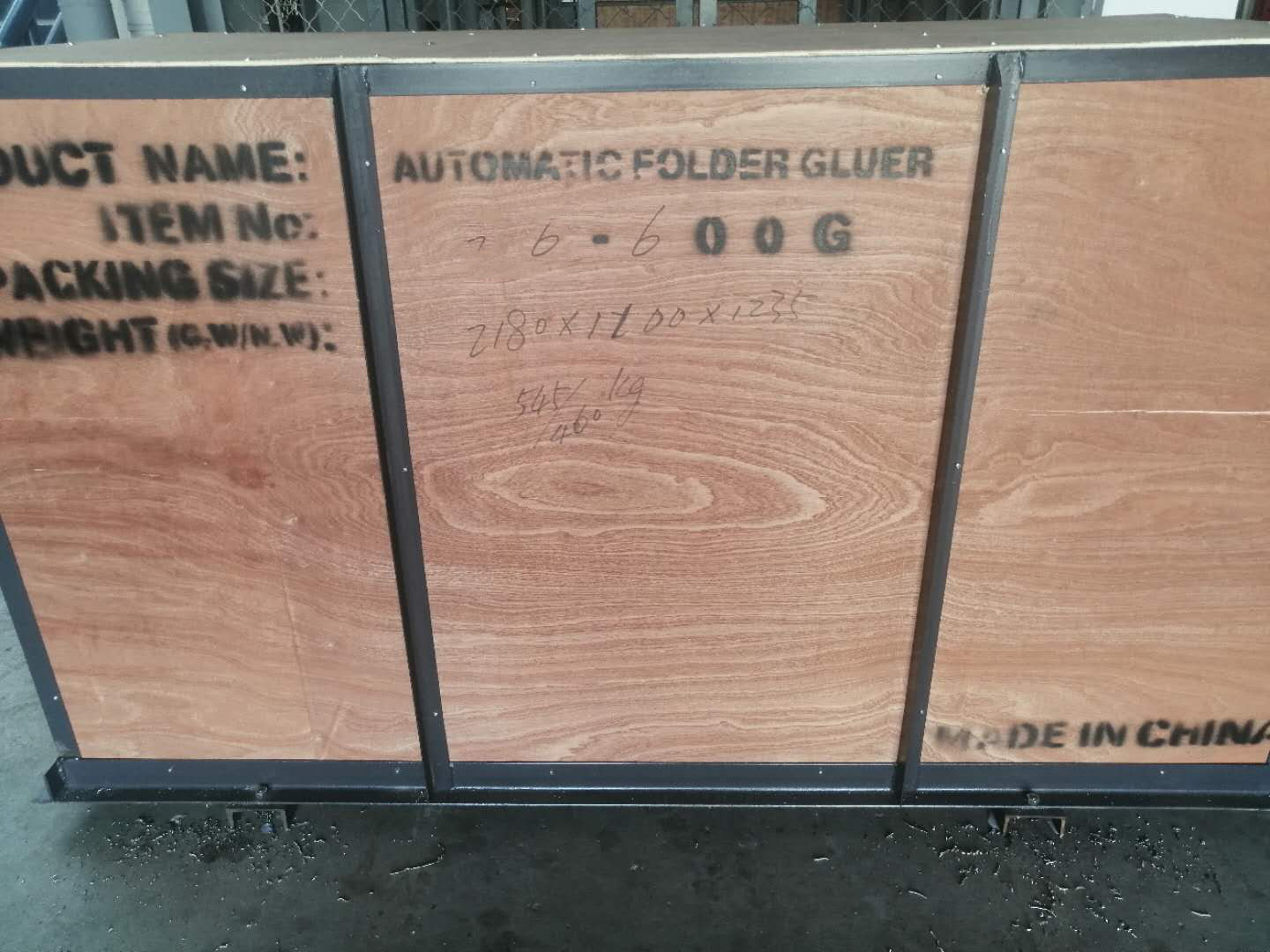

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Showroom Location : Egypt, Italy, Saudi Arabia, Mexico, Morocco, Algeria, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump

Condition : New

Automatic Grade : Automatic

Driven Type : Mechanical

Voltage : 380V

Dimension : 15*2.5*1.6M

Weight : 8.5T

Warranty : 1 Year

Key Selling Points : High-accuracy

Max. Format Size : 650mm*500mm

Inspection Size : max450mm*450mm,min:100mm*100mm

Paperweight : 180-450g/m

Max. Feeding Speed : 350m/min

Max. Inspection Speed : 240m/min

Power need : 20KW

Min. Spot Defect Size : 0-1 mm2,Contrast>15

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Egypt, Italy, Saudi Arabia, Mexico, Morocco, Algeria, South Africa

After-sales Service Provided : Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Contact Now

PRY-YC-650 ALL-IN-ONE INSPECTION MACHINE FOR FOLDER GLUER

Features

* Paste box and inspect quality at the same time, increasing qualified rate of delivery and shortening process flow.
* Feed paper with the printing surface facing down, to avoid the second time scratch.
* Easy to install and connect to existing folder gluer machine without any modification, or used as inspection machine alone.
* Inspect bath the front and back sides for printing defects, dis-cutting devaluation, drug code and etc comprehensively.Designed with intelligence, it only takes 2 hours for the operator to fully control the inspection system.
* It takes only 5 minutes to create a new job.
* Inspect with stability to make machine vision extremely close to human eyes, efficiently avoiding the waste and saving cost.

Technical Parameters

PRY-YC-650 ALL-IN-ONE INSPECTION MACHINE FOR FOLDER GLUER
Modal	PRY-YC-650	PRY-YC-850	PRY-YC-1100
Max. Format Size	650mmx500mm	850mmx600mm	11 □OmmxSOOmm
Max. Inspection Size	450mmx450mm	600mmx600mm	800rTimx800mm
Min. Inspection Size	100mmx100mm	100mmx100mm	100mmx100mm
Paperweight	180-450g/m	180-450g/m	180-450g/m
Max. Feeding Speed	350m/min	350m/min	350m/min
Max. Inspection Speed	240m/min	240m/min	240m/min
Dimension (LxWxH)M	15*2.5x1.6	17 x 2.7 x 1-6	17.5x2.9 x 1.6
Gross Weight	8.5T	9.5T	10.5T
Power need	20KW	22KW	24KW
Min. Spot Defect Size	0-1 mm2 (Contrast>15)
Min. Linear Defect Size	G.15mm*5mm (Contrast>15)
Color Difference Accuracy	A Es3
Overprint Devaluation	±0-15mm
Die-cutting Devaluation	± 0.3mm
Drug Code Inspection	Code repeated, code missing, code mistake
□rug Code Appearance Inspection	Printing missing, break, spot, printing misplace, smear
Collection for Good sheets	In fish-scale way
Collection for defected sheets	In fish-scale way

Configuration

Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW

Btrombone Folding Unit

Single and easy.eration for upper/down expansion Independent frame and fixed folding bar for stable farming box.

adjustment, Is fhight twin board moveable for piling belt is Left Aight folding belt is separately fine adjustable for belt speed,

fine adjustable on height according to pile demand, improving improving the folding accuracy. Special belt expansion function

the production efficiency. Conveying belt coordinate with main for convenient belt adjustment, no necessary to increase this

motor at AUTO model, equipped with counter and ejector. belt tension again.

Folding-Back unit Gluing Unit

Longer throe-board type, the first raiding line with 180° and A user-friendly interface system with a colour touchscreen

the third folding line with 135* , easy open box. Segment simplifies the operation process. The operator can easily and

type upper board with special design is able to regulate in e) automatically control paper sizes, overlapping and machine

Q3ansion and contraction, assistant tar special shape box. speeds.

Register Feeding Unit

Independent part could guide the paper box to a parallel Independent motor for drive, frequency inverter for adjusting

handrail hat allows a perfect blank alignment speed,coordinating in proportion with main motor speed,to

1) Correct the deviation efficiently control the paper space. Pneumatic raising or

2)Facilitate the subsequent accurate folding of the paper Ailling far the feeding paper gauge holder and left fright side

cassette gauge,convenient for prompt regulation .The vibration motor

3)Perfect folding quality inroughout the machine mounted on paper supporting holder-for feeding paper smoothly.

Applications

It suitable for post press processing, widely used in cartons, cardboard boxes, gift boxes, food boxes, medicine boxes, etc

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
