ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V

Shanghai Printyoung International Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V

  • 1
  • 2

Brand Name : PRINTYOUNG

Model Number : ZH-1100

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 16500 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Weight : 1.8T

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V

Dimension : 8.8*1.8*1.37m

Line Speed : 0-280m/min continuous adjustment

Suitable Paper : 210-600g/m² paperboard E corrugated board

Box Forming : single side gluing or both side gluing

Paper Feeding : Automatic Feeding

Glue : Cold Glue

Power : 6.5KW 380V

Contact Now

ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V

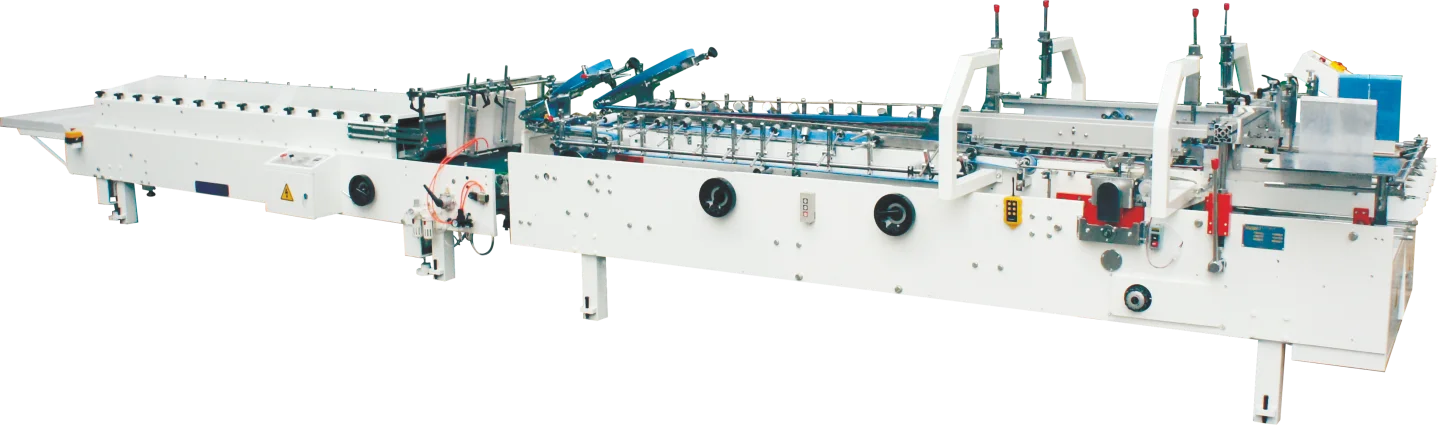

ZH-1100 Folder Gluer Machine
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
Features
1.Designed and manufactured for large straight line box.
2.The length of the fold makes it more reasonable to paste the large box.
3.It is also compatible with fine corrugated boxes (E/F/N).
4.Optional snap function (for Taobao box,flat box).
5.The conveyor has separate motor to control speed.It has auto trombone control function (only when the box coming, the pressing unit works).
6.Wireless remote control.
Technical Parameters
ZH-1100 Folder Gluer Machine
Line Speed
0-280m/min continuous adjustment
Suitable Paper
210-600g/m² paperboard E corrugated board
Box Forming
single side gluing or both side gluing
Paper Feeding
Automatic feeding
Glue
Cold glue
Power
6.5KW 380V
Weight
1.8t
Dimension
8.8*1.8*1.37M
Steel Frame Packing Size
12.15m³ 1692/1923kg
Feeding Part
4030*1480*1300=7.75m³ 1119/1250kg
Conveyor Part
3730*1180*1000=4.40m³ 573/673kg
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380VZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V

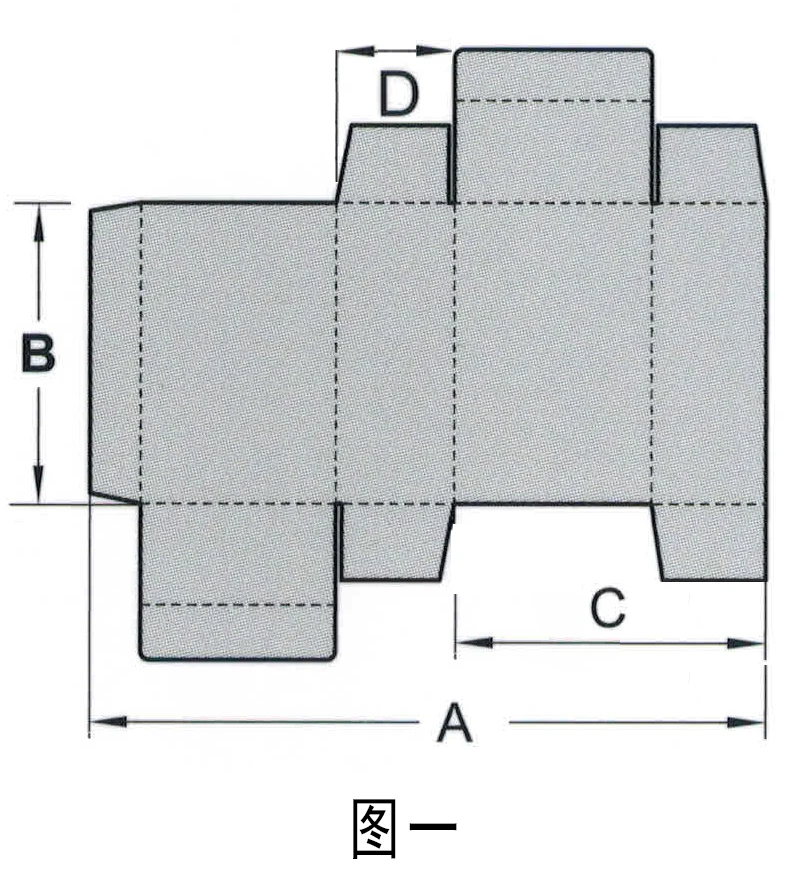

Box type
A
B
C (min)
D (min)
Side-glue box(Ⅰ)
180-1100mm
100-700mm
90mm
15mm

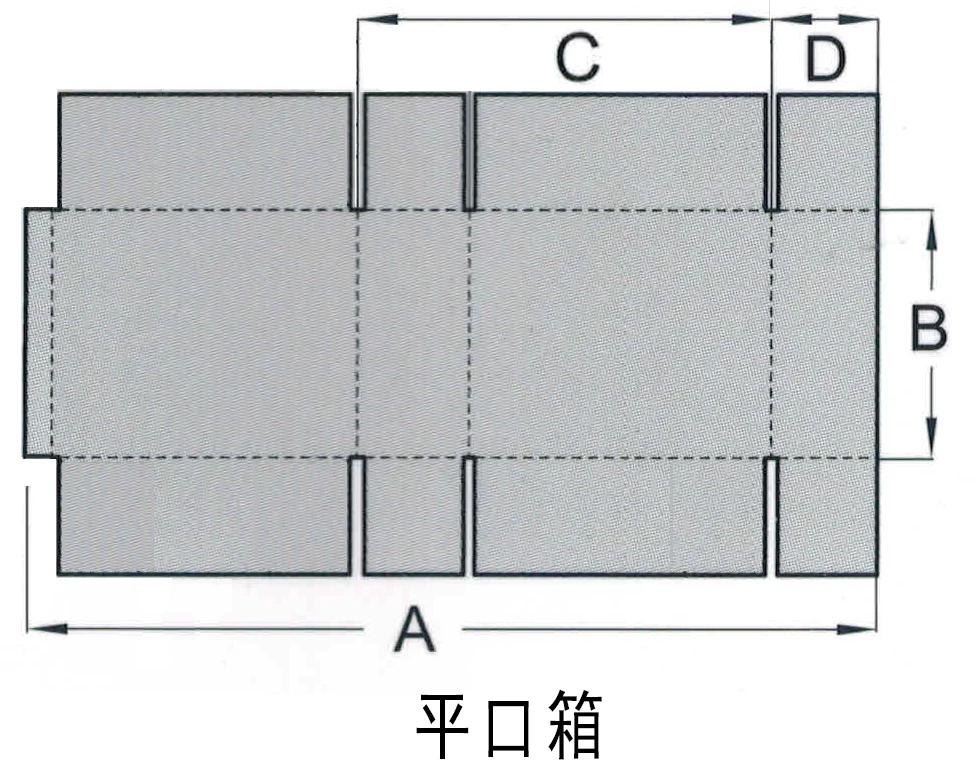

Flat box(Ⅱ)
180-1100mm
100-700mm
90mm
15mm

ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
ZH-1100 High Speed Carton Box Folder Gluer Machines Automatic Feeding 380V
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
